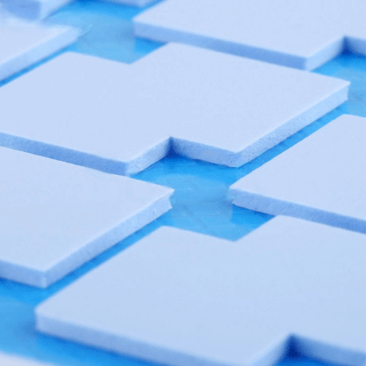

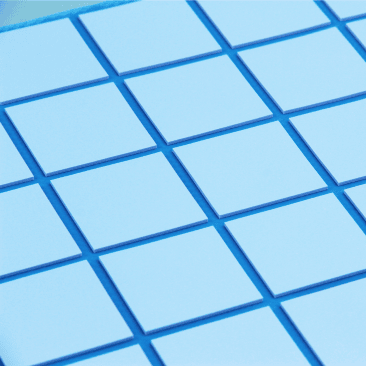

The SHEEN’s SF Series Silicone Thermal Pads are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, with options ranging from 1.5 to 15.0 W/m·K.
◆ Available in various thicknesses from 0.15 to 15.0 mm.
◆ Highly compressible, soft, reducing assembly stress and protecting sensitive and fragile components.
◆ Self-adhesive for easy application and rework.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Exceptional tensile strength and abrasion resistance.
◆ Excellent electrical insulation properties.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, with options ranging from 1.5 to 15.0 W/m·K.
◆ Available in various thicknesses from 0.15 to 15.0 mm.
◆ Highly compressible, soft, reducing assembly stress and protecting sensitive and fragile components.
◆ Self-adhesive for easy application and rework.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Exceptional tensile strength and abrasion resistance.
◆ Excellent electrical insulation properties.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Low silicone oil bleed and low siloxane volatility, minimizing impact on equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Electric Vehicle Battery Management System
◆ CPU/GPU Chips
◆ Capacitors
◆ Memory/VRAM particles
◆ Control boards
◆ Splitters
◆ Relays
Properties
| Properties | Unit | SF100-LFG | Test Method |
|---|---|---|---|
| Color | – | Gray & Pink | Visual |
| Reinforcement Carrier | – | Polyimide or Fiberglass | – |
| Thermal Conductivity | W/m·K | 1.5 | ASTM D5470 |
| Thermal Impedance (1mm,@30psi) | ℃*in2/W | 2.0 | ASTM D5470 |
| Thickness | mm | 1.0 ~ 10.0 | ASTM D374 |
| Standard Hardness | Shore 00 | 40/60±5 | ASTM D2240 |
| Customized Hardness | Shore 00 | 30 ~ 75 | ASTM D2240 |
| Elongation | % | 4 | ASTM D412 |
| Tensile Strength | psi | ≥150 | ASTM D412 |
| Compressibility (1mm,@30psi) | % | 70 | – |
| Density | g/cm3 | 2.2 | ASTM D792 |
| Dielectric Strength (@AC) | kV/mm | > 8 | ASTM D149 |
| Volume Resistivity | Ω·cm | 7*1013 | ASTM D257 |
| Operating Temp. | °C | -50 ~ 200 | – |
| Flame Rating | – | V-0 | UL94 |
| RoHS | – | PASS | IEC 62321 |
| Halogen | – | PASS | EN 14582 |
| REACH | – | PASS | EN 14372 |
