SG560-40 Thermal Grease 4.0W/mK

Product Features

SG560-40 4.0 W/m·K thermal grease (thermal paste) are renowned for its exceptional low thermal impedance and excellent wet-out performance, effectively filling microscopic pits between heat sinks and heat-generating chips. With a minimum interface thickness as low as 0.05 mm, it achieves extremely low thermal impedance, efficiently transferring heat from the heat-generating module. The grease maintains stable form and performance even at high temperatures of up to 150℃. It can be applied manually or through screen printing.

Product Parameters

The SHEEN’s SG560 Series Thermal Grease are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, available in options ranging from 1.0 to 5.0 W/m·K.
◆ Low thermal impedance, with a minimum of 0.015 ℃*in²/W at 30psi.
◆ Minimum interface thickness can reach as low as 0.05 mm.
◆ High-temperature resistance up to 150℃, with excellent dry-out resistance and no overflow.
◆ No preheating required before use.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.

【Applications】

◆ CPUs and GPUs
◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
◆ Gaming Consoles and Laptops

Properties

Properties Unit SG560-40 Test Method

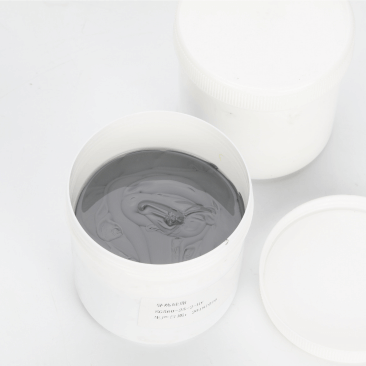

Color Gray Visual
Main components Silicone
Additives Metal Oxide
Thermal Impedance (@30psi) ℃*in2/W 0.017 ASTM D5470
Thermal Conductivity W/m·K 4.0 ASTM D5470
Minimum Interface Thickness mm 0.05
Viscosity (@25 ℃) Pa‧s 350 Brookfield RVF,#7
Density g/cm3 2.6 ASTM D792
Operating Temp. – 50 ~ 150
Thermal Weight Loss
(125℃/48H)
< 0.2%
RoHS PASS IEC 62321
Halogen PASS EN 14582
REACH PASS EN 14372

【Storage & Transportation】

Store in a well-ventilated, cool, and dry place, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】

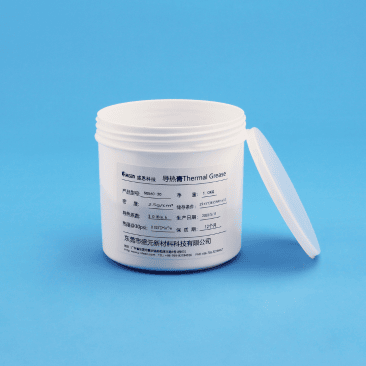

1 kg/can or Customized packaging according to customer requirements.
【Shelf Life】

12 months
