The SHEEN’s SE Series one-component Thermal Gel are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, available in options ranging from 2.0 to 10.0 W/m·K.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Outstanding electrical insulation properties, with dielectric strength up to 8 kV/mm.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.

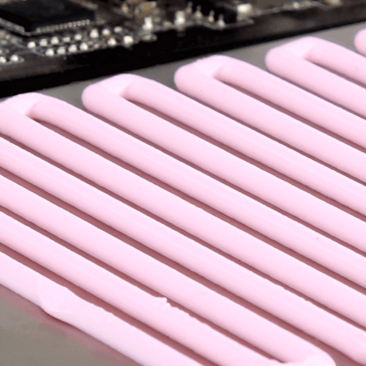

◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, available in options ranging from 2.0 to 10.0 W/m·K.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Outstanding electrical insulation properties, with dielectric strength up to 8 kV/mm.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ CPUs and GPUs
◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
◆ Gaming Consoles and Laptops
Properties
| Properties | Unit | SE50 | Test Method |
|---|---|---|---|

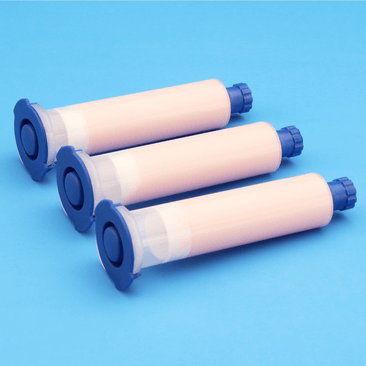

| Color | – | Pink | Visual |
| Thermal Conductivity | W/m·K | 5.0 | ASTM D5470 |
| Thermal Impedance(@30psi) | ℃*in2/W | 0.06 | ASTM D5470 |
| Flow Rate(@30cc,90psi) | g/min | 40±5 | – |
| Minimum Interface Thickness | mm | 0.10 | – |
| Density | g/cc | 3.1 | Helium Pycnometry |
| Outgassing | % | < 0.5 | ASTM E595 |
| Dielectric Strength (@AC) | kV/mm | > 5.0 | ASTM D149 |
| Dielectric Constant (@1MHz) | – | 7.0 | ASTM D150 |
| Volume Resistivity | Ω·cm | > 1014 | ASTM D257 |
| Operating Temp. | ℃ | -50 ~ 150 | – |
| Flame Rating | – | V-0 | UL94 |
| RoHS | – | PASS | IEC 62321 |
| Halogen | – | PASS | EN 14582 |
| REACH | – | PASS | EN 14372 |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry place, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】

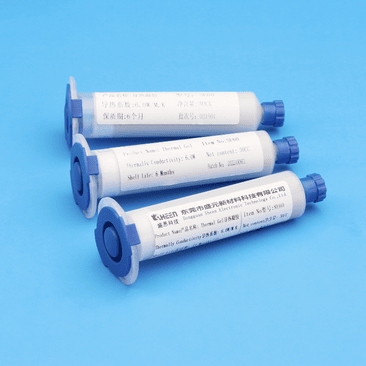

● 30cc ● 300cc
【Shelf Life】
12 months
