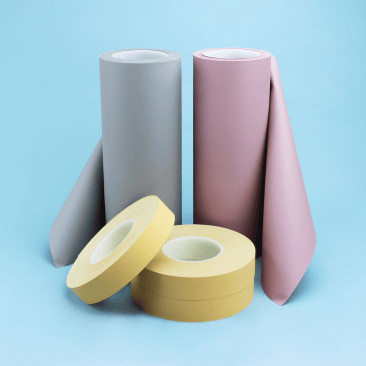

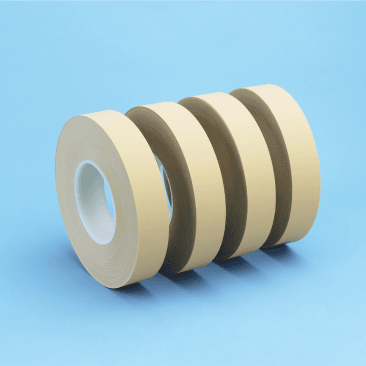

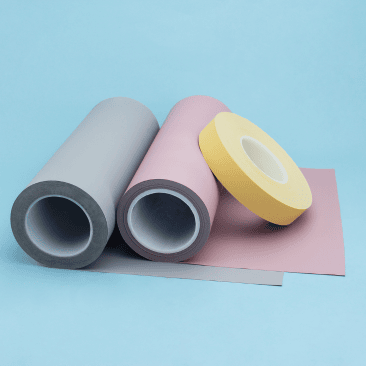

The SHEEN’s SC Series Thermal Films are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, with options ranging from 0.8 to 5.0 W/m·K.
◆ Optional fiberglass or polyimide film can be used as the reinforcement carrier.
◆ High mechanical strength and excellent electrical insulation properties.

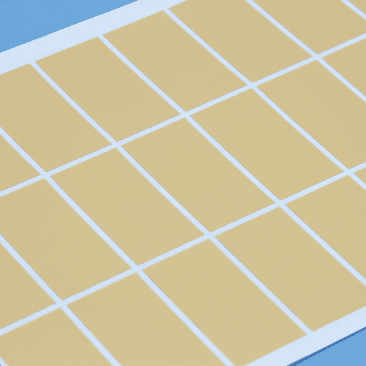

◆ Customizable die-cut shapes to meet specific customer needs.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, with options ranging from 0.8 to 5.0 W/m·K.
◆ Optional fiberglass or polyimide film can be used as the reinforcement carrier.
◆ High mechanical strength and excellent electrical insulation properties.
◆ Customizable die-cut shapes to meet specific customer needs.
◆ Superior flame resistance, achieving a UL94 V-0 rating.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ Uninterruptible Power Supplies (UPS)
◆ MOSFETs
◆ Switching power supplies
◆ Power amplifiers
◆ Electric vehicle motor controllers
Properties
| Properties | Unit | SC800-PI-2-K10 | Test Method |
|---|---|---|---|
| Color | – | Gray | Visual |
| Reinforcement Carrier | – | Polyimide | – |
| Thermal Conductivity | W/m·K | 1.3 | ASTM D5470 |
| Thickness | mm | 0.15±0.02 | ASTM D374 |
| Standard Hardness | Shore A | 90±5 | ASTM D2240 |
| Elongation | % | 40 | ASTM D412 |
| Tensile Strength | psi | 35 | ASTM D412 |
| Breakdown Voltage(@AC) | kV | ＞ 4.0 | ASTM D149 |
| Dielectric Constant (@1MHz) | – | 3.7 | ASTM D150 |
| Volume Resistivity | Ω·cm | 1*1012 | ASTM D257 |
| Operating Temp. | ℃ | -50 ~ 200 | – |
| Flame Rating | – | V-0 | UL94 |
| RoHS | – | PASS | IEC 62321 |
| Halogen | – | PASS | EN 14582 |
| REACH | – | PASS | EN 14372 |
【Product Specifications】
According to Customers’Requirements
【Storage & Transportation】
Store in a well-ventilated, cool, and dry place, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
Customized packaging according to customer requirements.
【Shelf Life】
24 months
