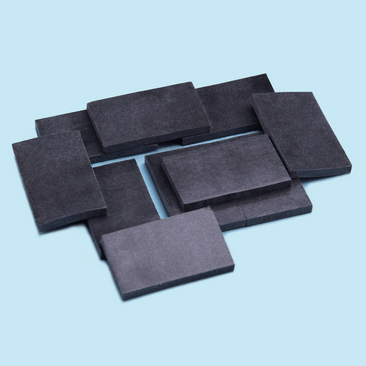

CSF series Carbon Fiber Thermal Pads are renowned for their distinctive characteristics, which include:
◆ Exceptional thermal conductivity options ranging from 15 to 45 W/mK.
◆ Available in various thicknesses from 0.3 to 12.0 mm.
◆ Features natural tackiness for easy application and rework.
◆ High compressibility, softness, and elasticity suitable for low-pressure applications.
◆ Low silicone oil bleed.
◆ Customizable shapes per client requirements.
◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.
◆ Exceptional thermal conductivity options ranging from 15 to 45 W/mK.
◆ Available in various thicknesses from 0.3 to 12.0 mm.
◆ Features natural tackiness for easy application and rework.
◆ High compressibility, softness, and elasticity suitable for low-pressure applications.
◆ Low silicone oil bleed.
◆ Customizable shapes per client requirements.
◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.
【Applications】
◆ 5G Base Station RRU
◆ Chips
◆ Capacitors
◆ Memory/Graphics Memory Particles
◆ Hard Drives
◆ Control Boards
◆ Shunts
◆ Relays
Properties of CSF35
| Properties | Unit | CSF35 | Test Method |
| Color | – | Black | Visual |
| Thickness | mm | 0.3 ~ 12.0 | ASTM D374 |
| Main Components | – | Silicone | – |
| Additives | – | Carbon Fiber,Al2O3 | – |
| Thermal Conductivity | W/m · K | 35.0 | ASTM D5470 |
| Thermal Impedance (1mm @20psi) | °C *in2/W | 0.09 | ASTM D5470 |
| Density | g/cm3 | 2.6±0.2 | ASTM D792 |
| Dielectric Strength (@AC) | V/mm | 100 | ASTM D149 |
| Customized Hardness | Shore 00 | 40 ~ 90 | ASTM D2240 |
| Standard Hardness | Shore 00 | 40/60±5 | ASTM D2240 |
| Elongation | % | 10 | ASTM D412 |
| Tensile Strength | psi | 30 | ASTM D412 |
| Optimal Compression Ratio | – | 10±5% | – |
| Flame Rating | – | V-0 | UL 94 |
| Operating Temp. | ℃ | – 50 ~ 160 | ASTM D1329 |
| RoHS | – | PASS | IEC 62321 |
| Halogen | – | PASS | EN 14582 |
| REACH | – | PASS | EN 14372 |
【Product Specifications】
According to Customers’Requirements
【Storage & Transportation】
Store in a well-ventilated, cool, and dry place, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】
Customized packaging according to customer requirements.
【Shelf Life】
24 months
