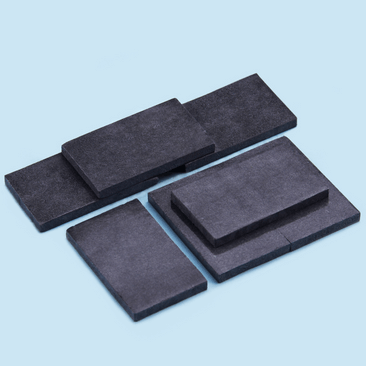

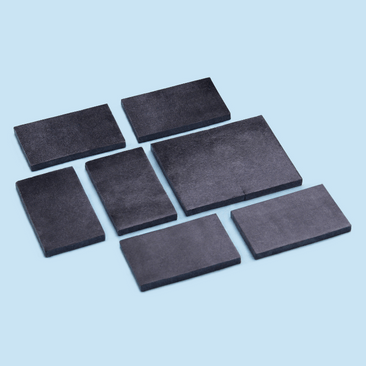

The SHEEN’s CSF series Carbon Fiber Thermal Pads are renowned for their distinctive characteristics, which include:
◆ Exceptional thermal conductivity options ranging from 15 to 45 W/mK.
◆ Available in various thicknesses from 0.3 to 12.0 mm.
◆ Features natural tackiness for easy application and rework.
◆ High compressibility, softness, and elasticity suitable for low-pressure applications.
◆ Low silicone oil bleed.
◆ Customizable shapes per client requirements.
◆ Compliant with RoHS, Halogen, REACH environmental and safety standards.
◆ Excellent flexibility, resilience, and thermal stability.

【Applications】

◆ 5G Base Station RRU
◆ Chips
◆ Capacitors
◆ Memory/Graphics Memory Particles
◆ Hard Drives
◆ Control Boards
◆ Shunts
◆ Relays

Properties

Properties	Color	Thermal Conductivity	Thermal Impedance (1mm,@20psi)	Thickness	Standard Hardness
Unit	–	W/m·K	℃*in²/W	mm	Shore 00
CSF15	Black	15.0	0.28	0.3 ~ 12.0	40/60±5
CSF20	Black	20.0	0.18	0.3 ~ 12.0	40/60±5
CSF25	Black	25.0	0.12	0.3 ~ 12.0	40/60±5
CSF30	Black	30.0	0.10	0.3 ~ 12.0	40/60±5
CSF35	Black	35.0	0.09	0.3 ~ 12.0	40/60±5
CSF40	Black	40.0	0.08	0.3 ~ 12.0	40/60±5
CSF45	Black	45.0	0.07	0.3 ~ 12.0	40/60±5
Test Method	Visual	ASTM D5470	ASTM D5470	ASTM D374	ASTM D2240

【Product Specifications】

According to Customers’Requirements
【Storage & Transportation】

Store in a well-ventilated, cool, and dry place, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】

Customized packaging according to customer requirements.
【Shelf Life】

24 months
