The SHEEN’s SE Series one-component Thermal Gel are renowned for their distinctive characteristics, which include:
◆ Good thermal conductivity, available in options ranging from 2.0 to 10.0 W/m·K.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Outstanding electrical insulation properties, with dielectric strength up to 8 kV/mm.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
◆ Good thermal conductivity, available in options ranging from 2.0 to 10.0 W/m·K.
◆ High softness and compressibility, providing low assembly stress, ideal for delicate and sensitive electronic components.
◆ Excellent flame resistance, achieving a UL94 V-0 rating.
◆ Outstanding electrical insulation properties, with dielectric strength up to 8 kV/mm.
◆ No cracking or dripping, ensuring good stability in both high and low-temperature environments.
◆ Can be precisely controlled for thickness and shape using automated equipment.
◆ Complies with RoHS, Halogen-Free, and REACH environmental and safety standards.
【Applications】
◆ CPUs and GPUs
◆ Power Supply Units (PSUs)
◆ LED Modules
◆ Engine Control Units (ECUs)
◆ Gaming Consoles and Laptops
Properties
| Properties | Color | Thermal Conductivity | Thermal Impedance(@30psi) | Flow Rate(@30cc,90psi) |
|---|---|---|---|---|
| Unit | – | W/m·K | ℃*in2/W | g/min |
| SE20 | Pink | 2.0 | 0.10 | 80±15 |
| SE30 | Pink | 3.0 | 0.08 | 25±5 |
| SE35 | Pink | 3.5 | 0.065 | 30±5 |
| SE40 | Pink | 4.0 | 0.06 | 40±5 |
| SE50 | Pink | 5.0 | 0.06 | 40±5 |
| SE60 | Gray | 6.0 | 0.045 | 20±5 |
| SE80 | Gray | 8.0 | 0.05 | 30±5 |
| SE100 | Gray | 10.0 | 0.045 | 10±5 |
| Test Method | Visual | ASTM D5470 | ASTM D5470 | – |
【Storage & Transportation】
Store in a well-ventilated, cool, and dry place, away from open flames.
This product is non-toxic and should be stored and transported as a non-hazardous material.
【Packaging】

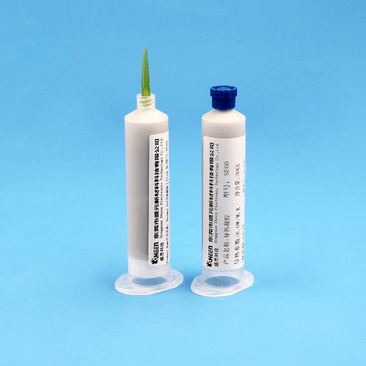

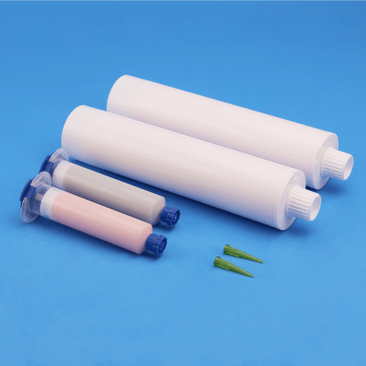

● 30cc ● 300cc
【Shelf Life】
12 month
